Hold Down Clamps 500 (Series)

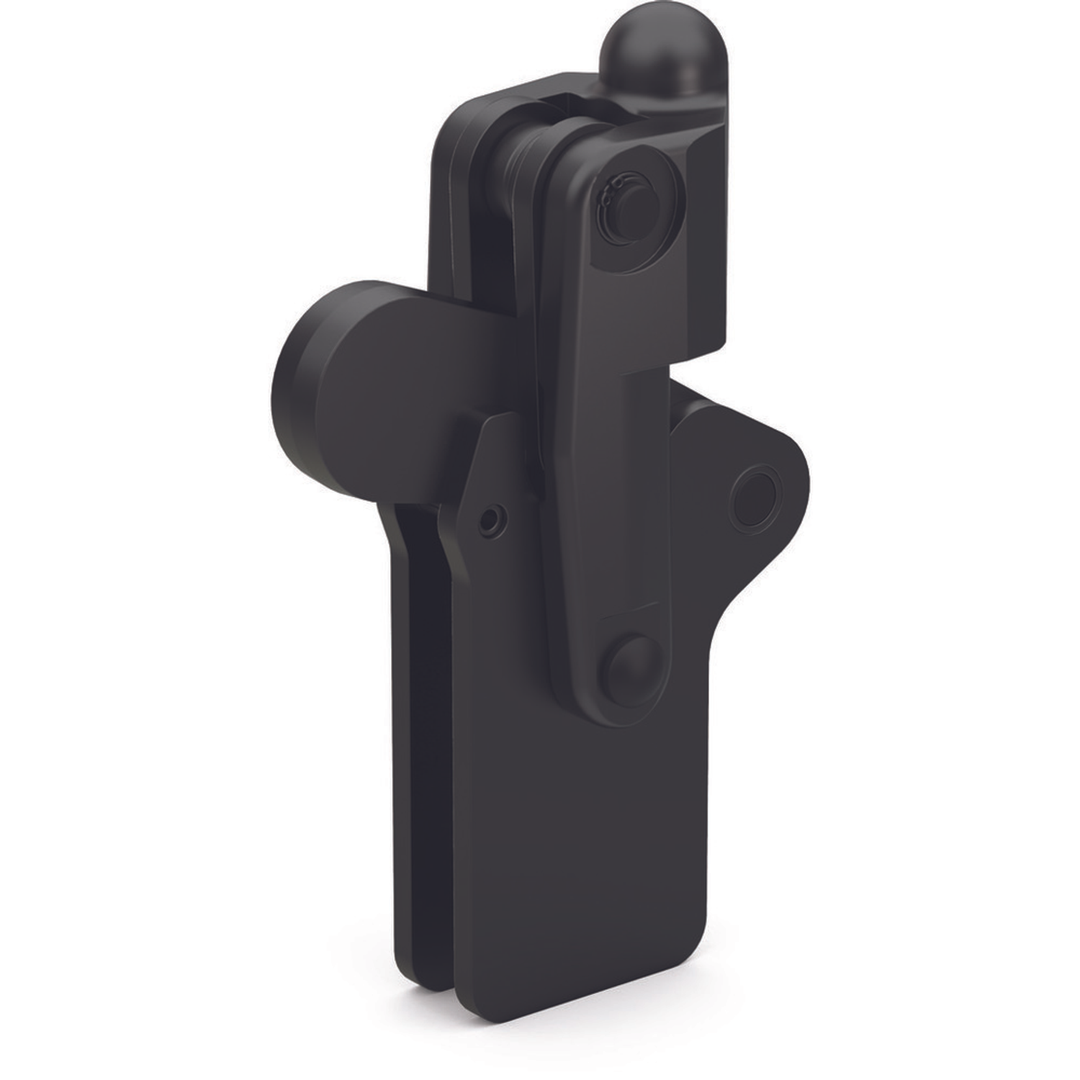

505-MLB
505-MLB
Vertical hold down clamp.
Modular design
Hardened pivot pins and bushings
Weldable clamping arm
Bar opens 200 degrees to clear work area
Pipe handle, mounting base, and bar options available
Visit Product Series:
CAD
Download CAD
View 3D Model
Report a CAD Issue
Download
Product Datasheet (PDF)
Product Details
Unit View:
Imperial
Metric
Height To Top Of Clamp Arm (in)
5.29
Maximum Holding Capacity (lbf)
2400
Clamp Arm Length (in)
1.14
Weight (lb)
3.31
Height To Top Of Clamp Arm (mm)
134.4
Maxmum Holding Capacity (N)
11000
Weight (kg)
1.5
Clamp Arm Length (mm)
29
Application - Checking Fixtures
Fair/Medium
Application - Food Processing
Not Recommended
Application - Machining
Fair/Medium
Clamp Arm Style
Weldable
Product Series
500 Series
Application - Wood-Working
Poor/Low
PublishedDate
1725462708000
Handle
Vertical
Application - Assembly
Excellent/High
Accomodates Workpiece Variation
No
Product Type
Modular Hold-Down Clamps
Toggle Lock Plus
No
Clamp Bar Opening (+10°) (degrees)
200
Application - Closures
Poor/Low
Service Environment
Harsh/Dirty
Base Mounting Style
Long
Standard Material
Forged alloy steel
DistributorGroup
Workholding (Manual, Power and Hydraulic Clamps)
Product Function
Clamping
Application - Welding
Excellent/High
