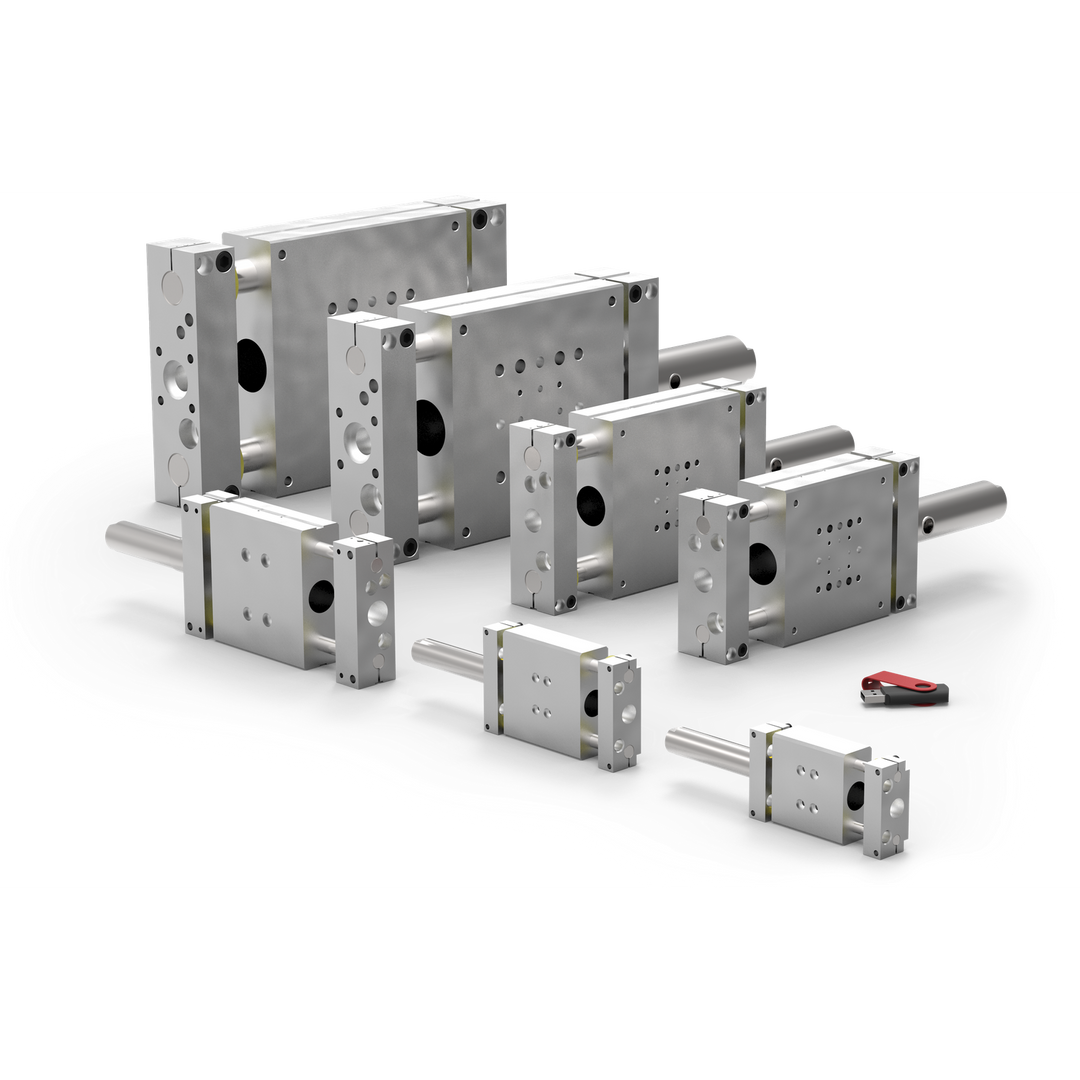

LINEAR BASE SLIDES WITH CYLINDER OPTIONS – DLB-T/A/N
DLB-10M-U - Destaco’S Dlb-12M-T Series Of Internally Powered Linear Base Slides Are Compact Models That Can Be Easily Assembled And Mounted.
Visit Product Series:
Base Slides-DLB-TANRUUnit View
Dimensions / Applications
- Length (in)9.2586
- Weight (lb)1.98
Technical Details
- Cylinder Bore (in)0.75
- Max Air Pressure (PSI)100
- Max Moment Load (in-lbs)75
- Payload (lb)15
- Shaft Diameter (in)0.375
- Stroke (in)11.811
- Thrust Force (lbf)31
- Imperial or Metric ProductMetric Version
- Supplied?No
Product Information
- AccessoriesOISP-011-C|OISP-011|OISN-011-C|OISN-011|CABL-013|SHOK-028|OHSP-005|OHSN-005|OTAL-047|OTAL-041|OTAL-042|OTAL-048|OTAL-045|OTAL-039|OTAL-046|OTAL-040|CABL-010|VLVF-005
- BrandRobohand
- Direct ConnectYes
- Product TypeBase Linear Slide
- Spindle Included?No
