WELDABLE, VERTICAL HOLD-DOWN CLAMPS FOR HEAVY DUTY APPLICATIONS – 500 SERIES
DESTACO - Workholding Equipment & Automation Tooling Solutions
Clamping
Manual Clamping
Hold Down Clamps
Hold Down Clamps-500

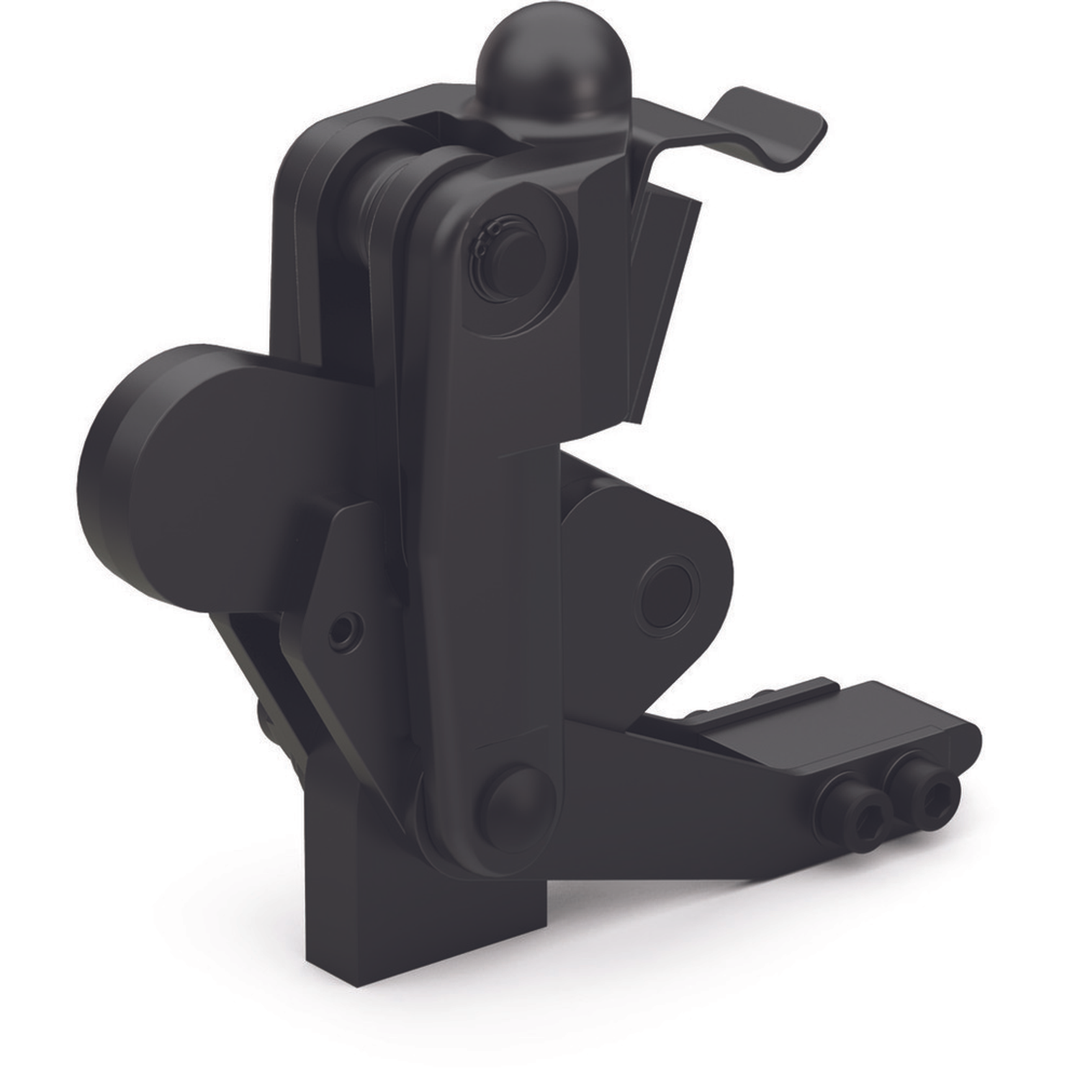

505-MBLSC - Vertical Hold Down Clamp
505-MBLSC - Vertical Hold Down Clamp
Email product details
Visit Product Series:
Hold Down Clamps-500
Request Quote
Technical Details
CAD / Download
Accessories
Resources
FAQs
Articles
Technical Details
Unit View
Imperial
Metric
Dimensions / Applications
Length (in)
4.44
Weight (lb)
3
Application - Assembly
Excellent/High
Application - Checking Fixtures
Fair/Medium
Application - Food Processing
Not Recommended
Application - Machining
Fair/Medium
Application - Welding
Excellent/High
Product Application
CLAMPING
Service Environment
Harsh/Dirty
Technical Details
Clamp Arm Length (in)
0.99
Height To Top Of Clamp Arm (in)
98.8
Maximum Holding Capacity (lbf)
2400
Supplied?
No
Product Information
Accessories
503503-L|505501|505502|505503|505503-L
Accomodates Workpiece Variation
No
Base Mounting Style
Swivel with locking spring clip
Brand
DESTACO
Clamp Arm Style
Weldable
Handle
Vertical
Handle Color
Red
Product Type
Vertical Hold-Down Toggle Clamp
Spindle Included?
No
Standard Material
Forged alloy steel
