THREADED BODY STYLE, PNEUMATIC SWING CLAMPS FOR WELDING & ASSEMBLY – 89E SERIES

DESTACO - Workholding Equipment & Automation Tooling Solutions
Clamping
Pneumatic Clamping
Pneumatic Swing Clamps
Pneumatic Swing Clamps-89E

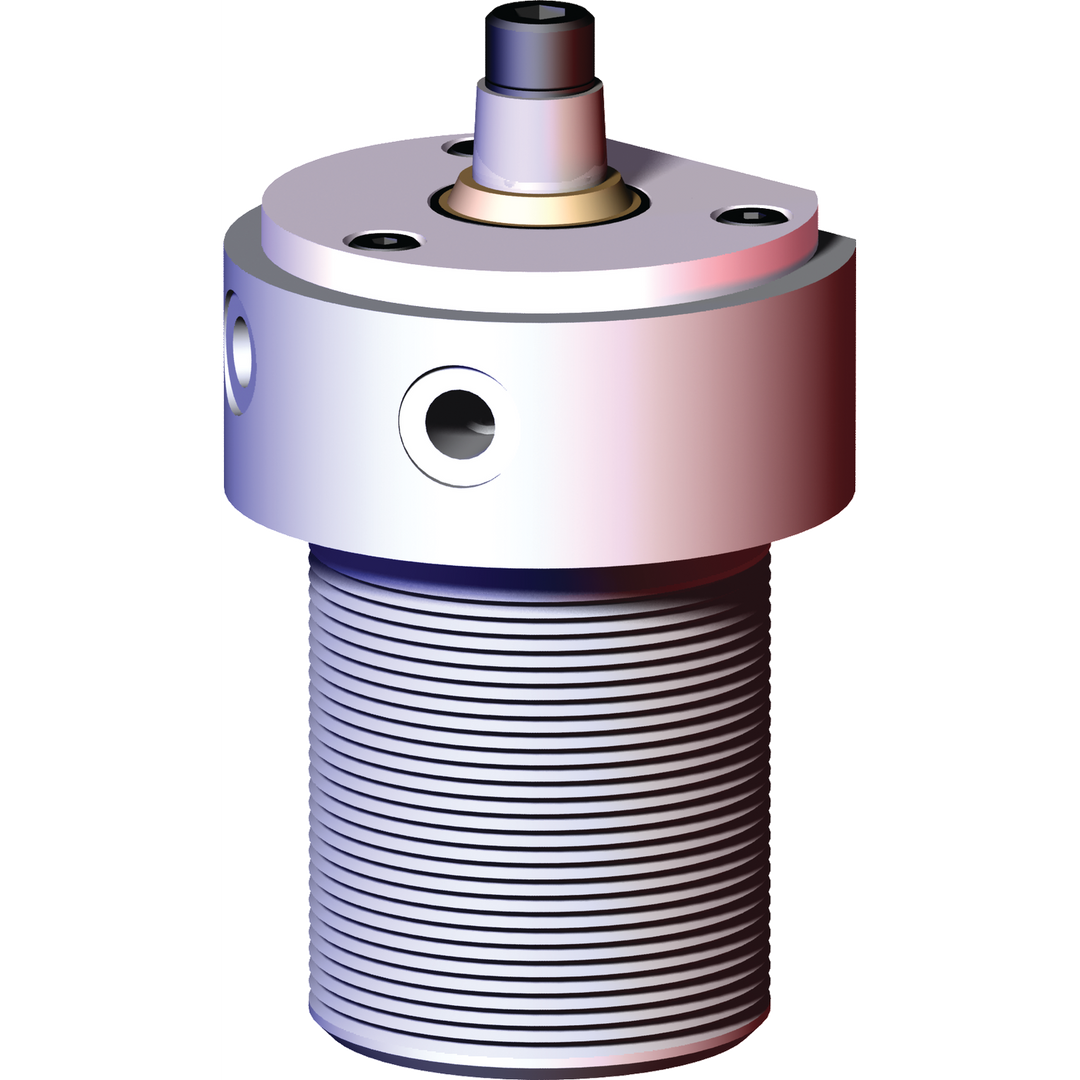

89E20-010-2L - Swing Clamp LH (Repl. For 89E20-010-1L)

89E20-010-2L - Swing Clamp LH (Repl. For 89E20-010-1L)

Visit Product Series:

Pneumatic Swing Clamps-89E

Unit View

Imperial

Metric

Dimensions / Applications

Length (in)3.83
Weight (lb)0.6
Product ApplicationCLAMPING

Technical Details

Air Consumption (per double stroke at 7 psi) (in³)0.003
Clamping Force @ 5Bar[72Psi] (lbf.)29.0
Cylinder Bore (in)0.79
Stroke (in)0.79
Stroke during rotation (in)0.39
Air Port sizeM5
MountThreaded Body
Supplied?No
Swing DirectionLH

Product Information

Accessories89B/E20-2-00|8JG-215-1|8MA-084-1|8MA-219-1
BrandDESTACO
Product TypePneumatic Swing Clamp
Spindle Included?No
