U-HOOK, ONE HANDED PULL ACTION LATCH CLAMPS - 324, 334, 344 AND 374 SERIES

DESTACO - Workholding Equipment & Automation Tooling Solutions
Clamping
Manual Clamping
Pull Action Latch Clamps
Pull Action Latch Clamps-324-334-344-374

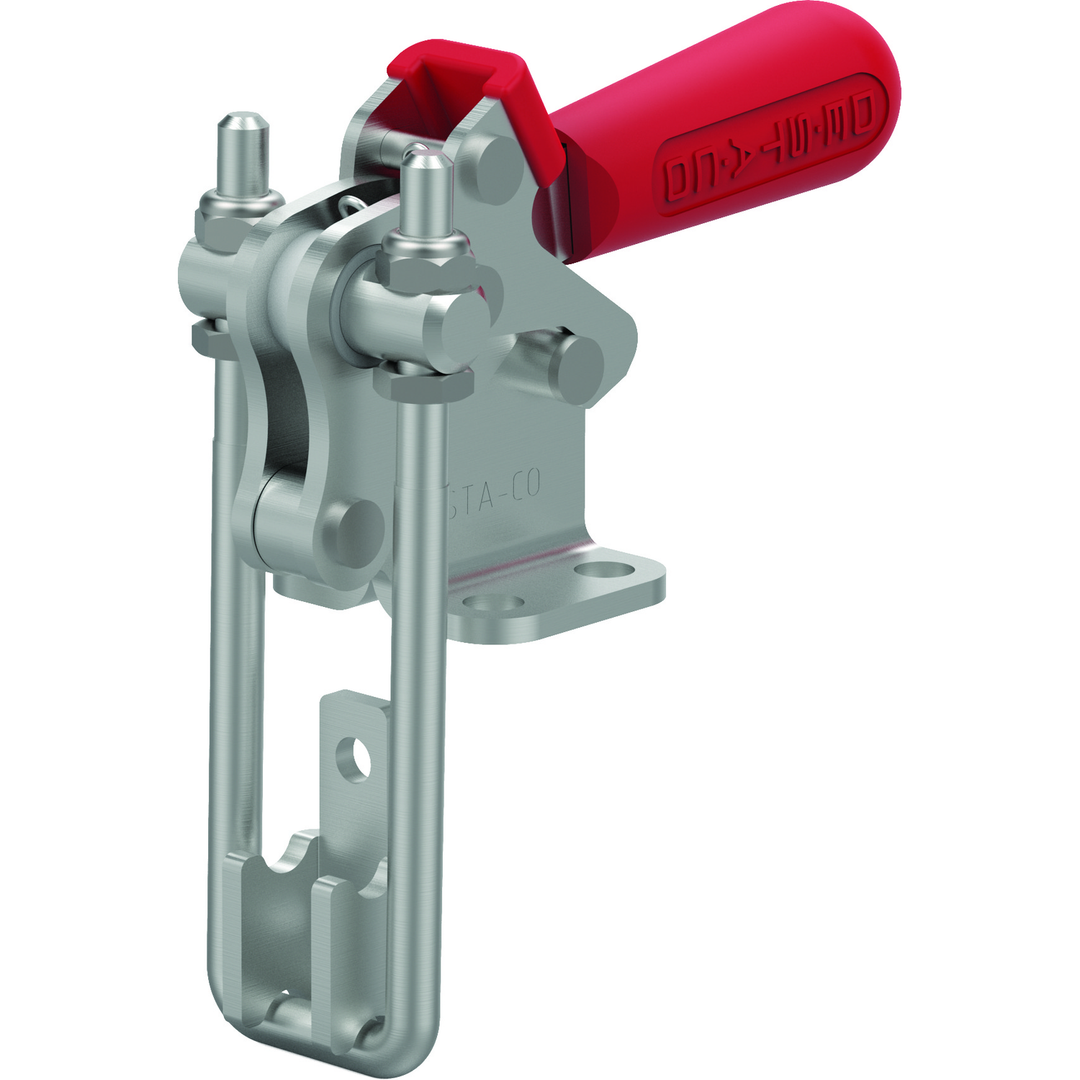

334-RSS-M-50 - a 334 With Toggel Lock Plus 50mm Longer Hook

Default Image

334-RSS-M-50 - a 334 With Toggel Lock Plus 50mm Longer Hook

Visit Product Series:

Pull Action Latch Clamps-324-334-344-374

Unit View

Imperial

Metric

Dimensions / Applications

Length (in)6.09
Weight (lb)0.6

Technical Details

Drawing Movement without Thumb Control (in)2.04
Max Hook Adjustment (in)0.86
Maximum Holding Capacity (lbf)1000
Supplied?No

Product Information

Base Mounting StyleFlange
BrandDESTACO
Handle ColorRed
Hook TypeU-Hook (Vertical)
Latch Plate334101
Latch Plate Supplied?Yes
Product TypeVertical Pull-Action Latch Clamp
Spindle Included?No
Standard MaterialStainless Steel
Toggle Lock PlusYes
