Manual Clamping

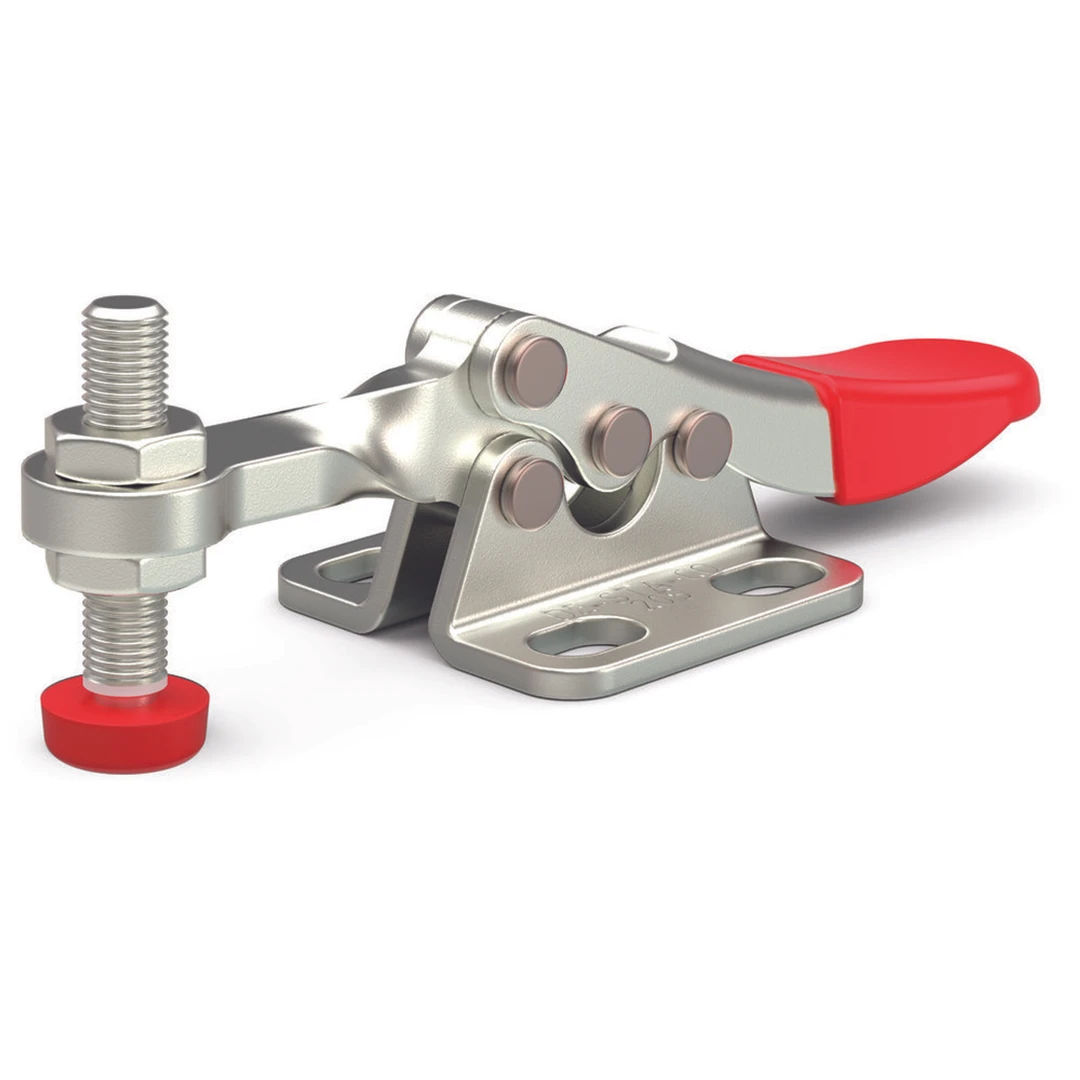

Small toggle clamp series for light duty clamping in tight spaces with flanged base and solid bar.

205-S

Visit Product Series:
CAD

Product Details Unit View:
Clamp Arm Length (in) 0.88
Maximum Holding Capacity (lbf) 60
Weight (lb) 0.07
Height Under Clamp Arm (in) 0.36
Maxmum Holding Capacity (N) 270
Weight (kg) 0.03
Clamp Arm Length (mm) 22.4
Height Under Clamp Arm (mm) 9.1
Base Mounting Style Flange
Spindle Assembly 205208-M
Application - Machining Poor/Low
Application - Assembly Excellent/High
Service Environment Normal
Clamp Arm Style Solid Bar
Toggle Lock Plus No
Handle Opening (+10°) 82
Duty Cycle 2
Handle Horizonal
Product Function Clamping
Application - Closures Excellent/High
DistributorGroup Workholding (Manual, Power and Hydraulic Clamps)
Product Series 205
Accomodates Workpiece Variation No
Product Type Standard
Clamp Bar Opening (+10°) (degrees) 94
Application - Wood-Working Excellent/High
Standard Material Steel
Application - Checking Fixtures Excellent/High
Application - Welding Poor/Low
Application - Food Processing Fair/Medium
Product Accessories
205208-M
SPINDLE M4X20 WITH HEX JAM NUT
