Manual Clamping

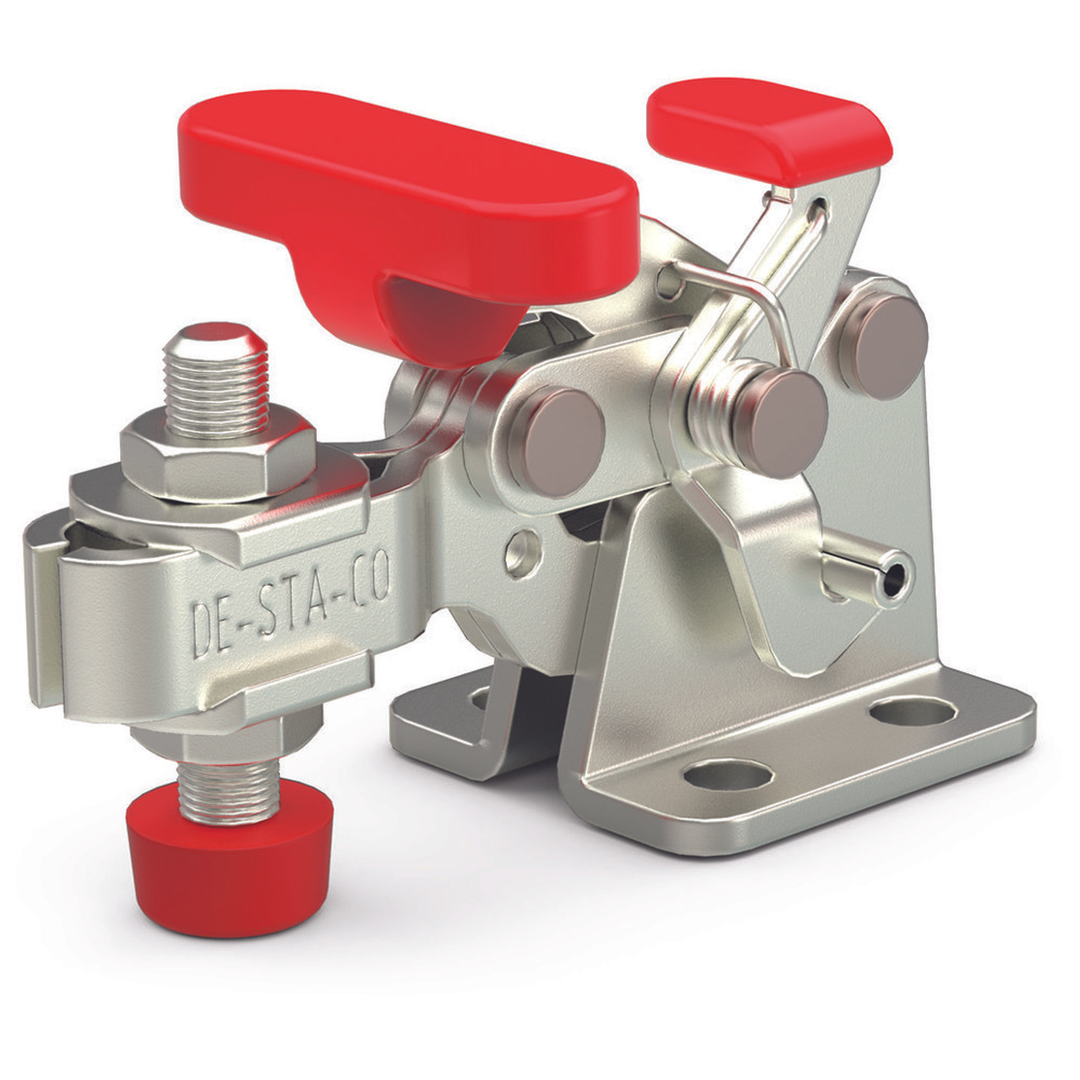

Destaco’s 305-UR Series horizontal hold down clamps feature a compact design suitable for use in confined spaces, Toggle Lock Plus capability, and flanged base with U-bar.

305-UR

Visit Product Series:
CAD

Product Details Unit View:
Maximum Holding Capacity (lbf) 150
Height Under Clamp Arm (in) 0.48
Clamp Arm Length (in) 1.19
Weight (lb) 0.13
Clamp Arm Length (mm) 30.2
Weight (kg) 0.06
Height Under Clamp Arm (mm) 12.2
Maxmum Holding Capacity (N) 670
Toggle Lock Plus Yes
DistributorGroup Workholding (Manual, Power and Hydraulic Clamps)
Standard Material Steel
Clamp Arm Style U-Bar
Application - Closures Excellent/High
Application - Checking Fixtures Fair/Medium
Spindle Assembly 305208-M
Handle Horizonal
Duty Cycle 2
Product Function Clamping
Handle Opening (+10°) 170
Base Mounting Style Flange
Application - Food Processing Fair/Medium
Application - Wood-Working Excellent/High
Flanged Washers 12111
Application - Welding Poor/Low
Product Type Compact
Product Series 305/307/309
Clamp Bar Opening (+10°) (degrees) 90
Application - Machining Poor/Low
Service Environment Normal
Accomodates Workpiece Variation No
Application - Assembly Excellent/High
Product Accessories
305208-M
SPINDLE M5X25 WITH HEX JAM NUT
