Manual Clamping
Destaco’s 385-R Series pull action latch clamps are equipped with patented thumb control lever for one handed operation, threaded U-hook for easy adjustment, and Toggle Lock Plus capabilities.

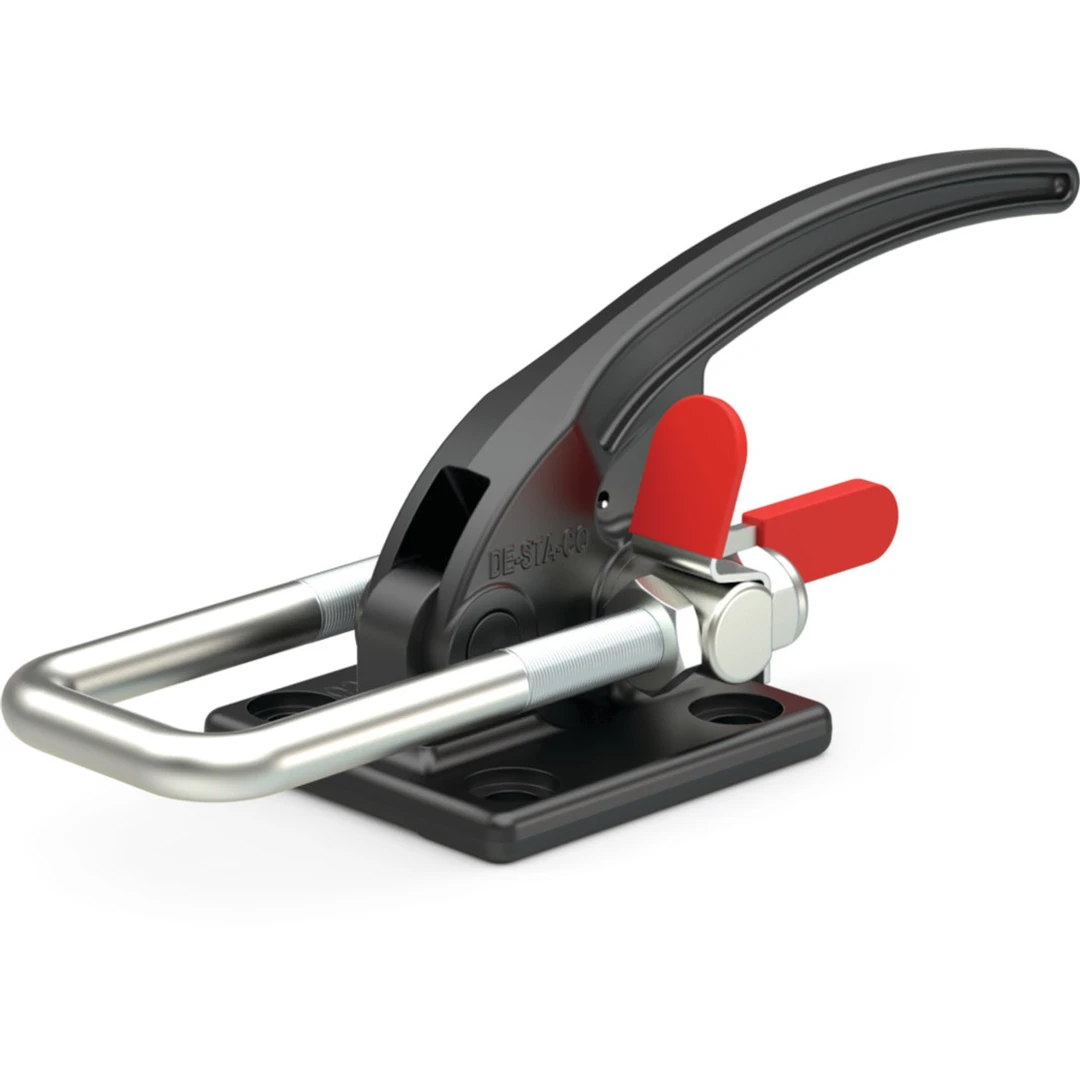

385-R

Threaded U-Bolt permits easy adjustment. Ideal for latching applications on molds, doors, lids, access covers, drums, containers, vessels
  • Heavy duty
  • Supplied with threaded U-Hook for easy adjustment
  • With Toggle Lock Plus
  • Patented Thumb Control Lever provides one-handed operation
  • Optional latch plates and hook lengths available
Visit Product Series:
CAD

Product Details Unit View:
Drawing Movement without Thumb Control (in) 2.31
Maximum Holding Capacity (lbf) 7500
Weight (lb) 3.4
Max Hook Adjustment (in) 1.07
Weight (kg) 1.54
Drawing Movement without Thumb Control (mm) 55.6
Hook Adjustable Range (mm) 36.1
Maxmum Holding Capacity (N) 33300
Drawing Movement without Thumb Control (mm) 55.6
Base Mounting Style Flange
283-HTS_TARIFF_CODE 83024900
Standard Material Steel
Product Series 385
Replacement Hook Assembly 385104
Latch Plate 385102 / 375509
Product Type Heavy Duty
Ef:Af Exerting Force: Applied Force ((pushing/pulling)) 44:1
283-COUNTRY_OF_ORIGIN TH
Toggle Lock Plus Yes
Hook Type U-Hook (Horizontal)
Latch Plate Supplied? No
Requires Articulation yes
Hook Adjustable Range 36.1
Product Function Clamping
Product Accessories
385102
LATCHPLATE
