Manual Swing Clamp

6004-SWR

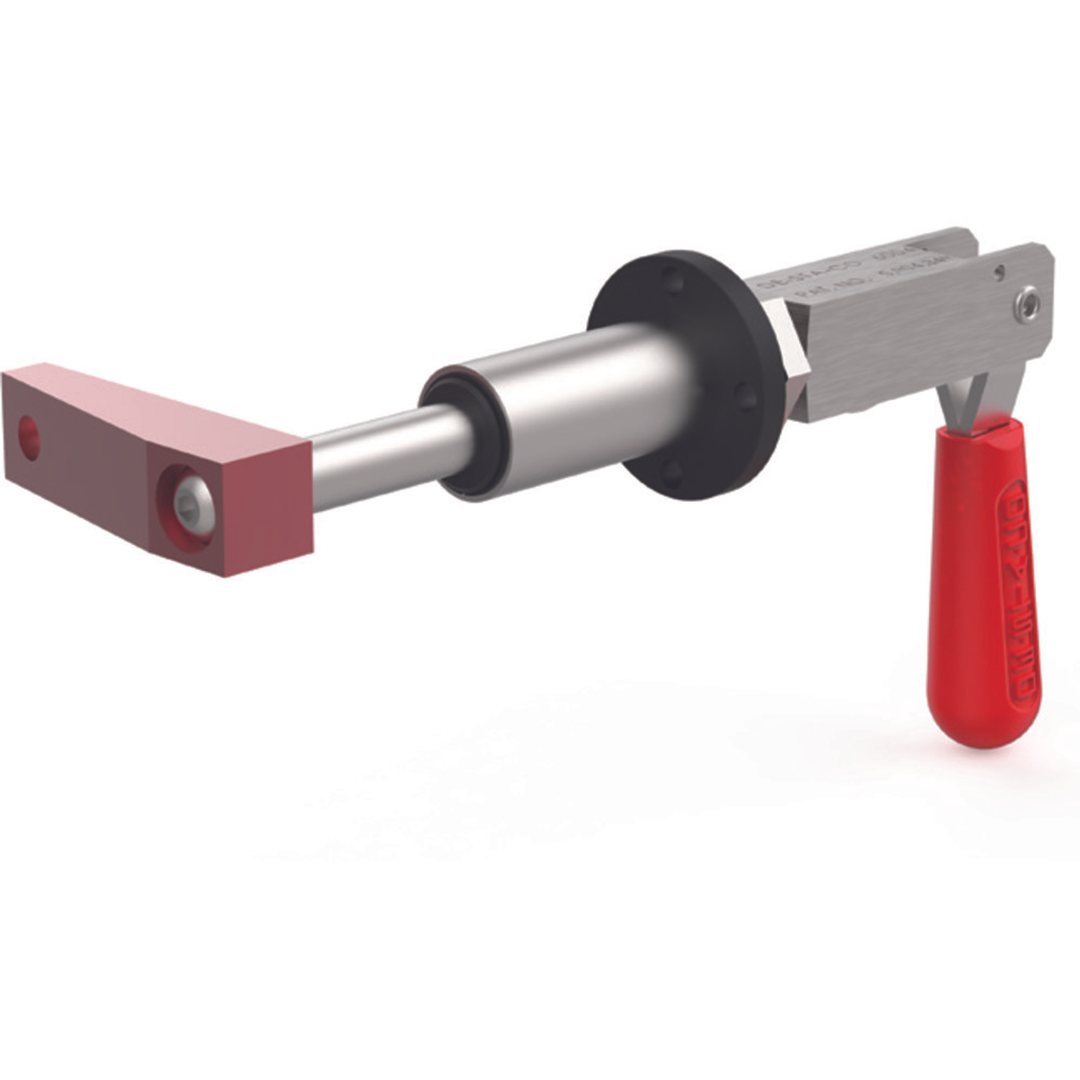

Destaco’s 6004-SWR Series of manual right-swing clamps are easy-to-use options for fixture building/testing, welding and assembly operations in the industrial, aerospace, and automotive markets. They provide quick swing-and-clamp movement for increased productivity. The new Manual Swing Clamps feature an enclosed cam track that can clamp and toggle-lock in the pull down closed position. They also feature a detent that holds the clamp in the open position in order to prevent unwanted movement.
Visit Product Series:
CAD

Product Details Unit View:
Exerting Force (lbf) 323
Maximum Holding Capacity (lbf) 450
Vertical clamp stroke (in) 0.63
Vertical clamp stroke (in) 0.63
Stroke during rotation (in) 0.87
Weight (lb) 1.32
Height Under Clamp Arm (in) 2.19
exerting_force_lbf_english 323
Clamp Arm Length (in) 2
Stroke during rotation (in) 0.87
Height Under Clamp Arm (mm) 55.7
exerting_force_n_metric 1437
Vertical clamp stroke (mm) 16
Maxmum Holding Capacity (N) 2000
Weight (kg) 0.6
Vertical clamp stroke (mm) 16
Exerting Force (N) 1437
Stroke during rotation (mm) 22
Clamp Arm Length (mm) 50.8
Max Clamping Stroke (mm) 16
Stroke during rotation (mm) 22
Product Function Clamping
Product Series 6004
