End-of-Line, Pick-and-Place Palletizing

Bag Grippers

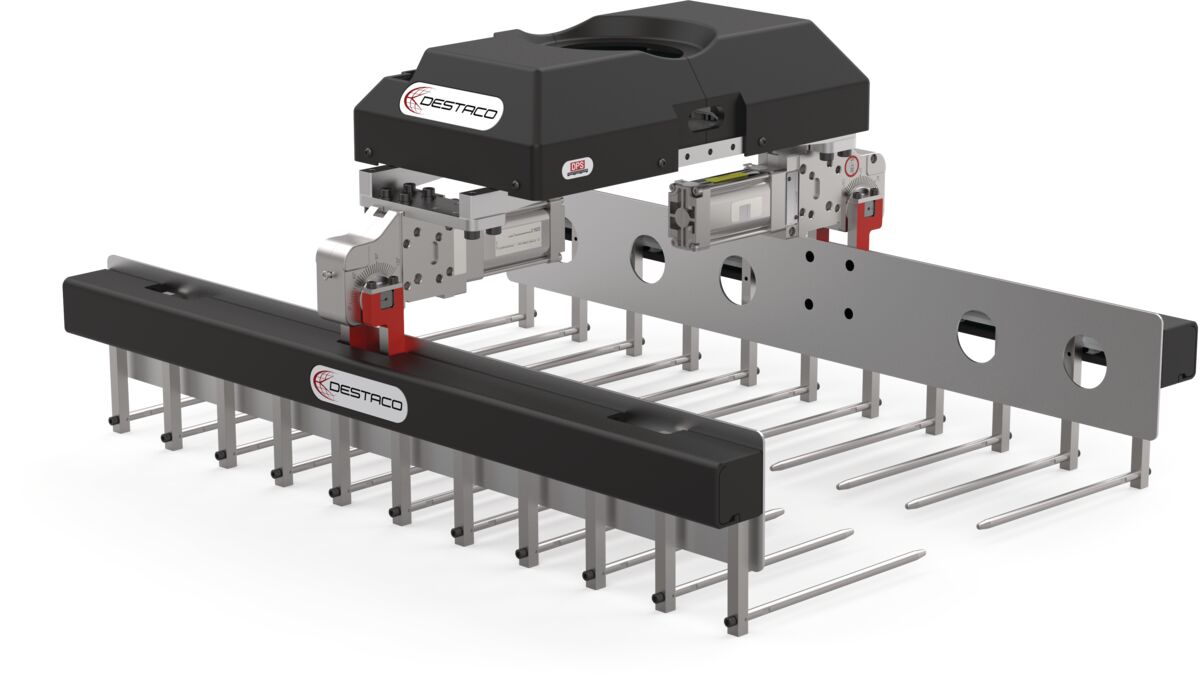

DPS Series Bag Grippers

DPS Series Bag Grippers

DESTACO DPS palletizing bag grippers are designed to be a cost effective, reliable end-of-line, pick-and-place pneumatic driven palletizing solution. The DPS series is sold both as a kit for budget minded DIYer or as a fully assembled ready to install end effector by DESTACO.


Offered in 3 configurable sizes, 15Kg, 30Kg and 50Kg plus with a variety of straight and angled tine lengths to match bag size application requirements. Bag width adjustment is fast and simple by loosening a couple bolts and sliding each side in and out for optimum gripping.


The DPS bag gripper is a highly configurable off-the- shelf solution with optional standoffs to bolt direct to today’s advanced robots. For a proven simple, reliable, maintenance-free end-of-line palletizing operation... choose a DESTACO DPS bag gripper.

Features

  • Speed Matters - with rapid actuation and lightweight design, the DESTACO bag gripper can palletize up to 30 bags per minute when working in concert with robotic automation.
  • Secure Transfer - our bag grippers utilize an enclosed, pneumatic toggle-lock power clamp with integrated open/ closes sensing to hold bags secure even if air pressure is lost. Simple maintenance-free operation.
  • More Options - available options include configurable LED status light, slip sheet transfer, plug and play valve/control packages and pneumatically controlled bag stabilizer.
  • Off-the-shelf kit or fully assembled
  • Plug and Play controls
  • Integrated open/closed position sensing
  • Optional LED Status light indicator
  • Adjustable opening angle and bag width

Markets

Applications

Product
Product Type
Part Number Type
Short Description
Maximum Bag Size
Stroke (in)
Weight (lbs)
Max Payload (lb)
Length (in)
DPS50-1P-0014-00000-K
Destaco Bag GripperBaseBag Gripper - Base Model, 50kg, No Add-on's, Kitted, 280mm, 10° Bent tine39.37 x 24.21 x 7.87 in (1000 x 615 x 200 mm)79.2110.23
DPS15-1P-0001-00000-K
Destaco Bag GripperBaseBag Gripper - Base Model, 15kg, No Add-on's, Kitted, 120mm, straight tine21.65 x 14.96 x 5.9 in (550 x 380 x 150 mm)45.833.07
DPS-RS-LD-01-KIT
Robot Stand-Off KitAccessoriesRobot Stand-Off Kit, 4 Inch (100mm) Bolt Circle, Light Duty4.7
DPS-1P-00-C2-KIT
C2 Controls KitAccessoriesC2 Controls Kit1.4
DPS50-1P-0004-00000-A
Destaco Bag GripperBaseBag Gripper - Base Model, 50kg, No Add-on's, Assembled, 280mm, straight tine39.37 x 24.21 x 7.87 in (1000 x 615 x 200 mm)79.2110.23
DPS50-1P-0011-00000-A
Destaco Bag GripperBaseBag Gripper - Base Model, 50kg, No Add-on's, Assembled, 120mm, 10° Bent tine39.37 x 24.21 x 7.87 in (1000 x 615 x 200 mm)79.2110.23
DPS-RS-HD-05-KIT
Robot Stand-Off KitAccessoriesRobot Stand-Off Kit, 6 inch, 200mm Bolt Circle, Heavy Duty21.6
DPS15-1P-0001-00000-A
Destaco Bag GripperBaseBag Gripper - Base Model, 15kg, No Add-on's, Assembled, 120mm, straight tine21.65 x 14.96 x 5.9 in (550 x 380 x 150 mm)45.833.07
DPS-RS-HD-04-KIT
Robot Stand-Off KitAccessoriesRobot Stand-Off Kit, 6 inch, 160mm Bolt Circle, Heavy Duty18.9
DPS-T-01-KIT
Tine KitAccessoriesTine Kit, 120mm, Straight4.72
DPS15-1P-0002-00000-A
Destaco Bag GripperBaseBag Gripper - Base Model, 15kg, No Add-on's, Assembled, 160mm, straight tine21.65 x 14.96 x 5.9 in (550 x 380 x 150 mm)45.833.07
DPS15-1P-0013-00000-A
Destaco Bag GripperBaseBag Gripper - Base Model, 15kg, No Add-on's, Assembled, 220mm, 10° Bent tine21.65 x 14.96 x 5.9 in (550 x 380 x 150 mm)45.833.07
DPS-1P-00-L-00-KIT
LED Indicator light KitAccessoriesLED Indicator light Kit
DPS30-1P-0013-00000-A
Destaco Bag GripperBaseBag Gripper - Base Model, 30kg, No Add-on's, Assembled, 220mm, 10° Bent tine29.5 x 20.47 x 5.9 in (750 x 520 x 150 mm)60.566.14
DPS-RS-HD-01-KIT
Robot Stand-Off KitAccessoriesRobot Stand-Off Kit, 4 inch, 125mm Bolt Circle, Heavy Duty12.3
DPS-RS-HD-03-KIT
Robot Stand-Off KitAccessoriesRobot Stand-Off Kit, 4 inch, 160mm Bolt Circle, Heavy Duty17
DPS-RS-HD-02-KIT
Robot Stand-Off KitAccessoriesRobot Stand-Off Kit, 6 inch, 125mm Bolt Circle, Heavy Duty14.2
DPS50-1P-0004-00000-K
Destaco Bag GripperBaseBag Gripper - Base Model, 50kg, No Add-on's, Kitted, 280mm, straight tine39.37 x 24.21 x 7.87 in (1000 x 615 x 200 mm)79.2110.23
DPS15-1P-0011-00000-K
Destaco Bag GripperBaseBag Gripper - Base Model, 15kg, No Add-on's, Kitted, 120mm, 10° Bent tine21.65 x 14.96 x 5.9 in (550 x 380 x 150 mm)45.833.07
DPS50-1P-0012-00000-A
Destaco Bag GripperBaseBag Gripper - Base Model, 50kg, No Add-on's, Assembled, 160mm, 10° Bent tine39.37 x 24.21 x 7.87 in (1000 x 615 x 200 mm)79.2110.23
DPS-1P-00-C1-KIT
C1 Controls KitAccessoriesC1 Controls Kit0.66
DPS-T-11-KIT
Tine KitAccessoriesTine Kit, 120mm, Bent4.72
DPS-1P-PS-00-KIT
Pneumatic Stabilizer KitAccessoriesPneumatic Stabilizer Kit
DPS50-1P-0014-00000-A
Destaco Bag GripperBaseBag Gripper - Base Model, 50kg, No Add-on's, Assembled, 280mm, 10° Bent tine39.37 x 24.21 x 7.87 in (1000 x 615 x 200 mm)79.2110.23
DPS30-1P-0012-00000-A
Destaco Bag GripperBaseBag Gripper - Base Model, 30kg, No Add-on's, Assembled, 160mm, 10° Bent tine29.5 x 20.47 x 5.9 in (750 x 520 x 150 mm)60.566.14
DPS15-1P-0014-00000-A
Destaco Bag GripperBaseBag Gripper - Base Model, 15kg, No Add-on's, Assembled, 280mm, 10° Bent tine21.65 x 14.96 x 5.9 in (550 x 380 x 150 mm)45.833.07
DPS30-1P-0013-00000-K
Destaco Bag GripperBaseBag Gripper - Base Model, 30kg, No Add-on's, Kitted, 280mm, 10° Bent tine29.5 x 20.47 x 5.9 in (750 x 520 x 150 mm)60.566.14
DPS30-1P-0002-00000-K
Destaco Bag GripperBaseBag Gripper - Base Model, 30kg, No Add-on's, Kitted, 160mm, straight tine29.5 x 20.47 x 5.9 in (750 x 520 x 150 mm)60.566.14
DPS50-1P-0011-00000-K
Destaco Bag GripperBaseBag Gripper - Base Model, 50kg, No Add-on's, Kitted, 120mm, 10° Bent tine39.37 x 24.21 x 7.87 in (1000 x 615 x 200 mm)79.2110.23
DPS15-1P-0004-00000-K
Destaco Bag GripperBaseBag Gripper - Base Model, 15kg, No Add-on's, Kitted, 280mm, straight tine21.65 x 14.96 x 5.9 in (550 x 380 x 150 mm)45.833.07
DPS30-1P-0001-00000-K
Destaco Bag GripperBaseBag Gripper - Base Model, 30kg, No Add-on's, Kitted, 120mm, straight tine29.5 x 20.47 x 5.9 in (750 x 520 x 150 mm)60.566.14
DPS-RS-LD-02-KIT
Robot Stand-Off KitAccessoriesRobot Stand-Off Kit, 6 inch, (100mm) Bolt Circle, Light Duty5.5
DPS-T-13-KIT
Tine KitAccessoriesTine Kit, 220mm, Bent8.66
DPS-1P-SS-00-KIT
Slip Sheet KitAccessoriesSlip Sheet Kit4
DPS-T-04-KIT
Tine KitAccessoriesTine Kit, 280mm, Straight11.02
DPS15-1P-0002-00000-K
Destaco Bag GripperBaseBag Gripper - Base Model, 15kg, No Add-on's, Kitted, 160mm, straight tine21.65 x 14.96 x 5.9 in (550 x 380 x 150 mm)45.833.07
DPS50-1P-0012-00000-K
Destaco Bag GripperBaseBag Gripper - Base Model, 50kg, No Add-on's, Kitted, 160mm, 10° Bent tine39.37 x 24.21 x 7.87 in (1000 x 615 x 200 mm)79.2110.23
DPS50-1P-0002-00000-K
Destaco Bag GripperBaseBag Gripper - Base Model, 50kg, No Add-on's, Kitted, 160mm, straight tine39.37 x 24.21 x 7.87 in (1000 x 615 x 200 mm)79.2110.23
DPS-T-12-KIT
Tine KitAccessoriesTine Kit, 160mm, Bent6.3
DPS50-1P-0013-00000-K
Destaco Bag GripperBaseBag Gripper - Base Model, 50kg, No Add-on's, Kitted, 220mm, 10° Bent tine39.37 x 24.21 x 7.87 in (1000 x 615 x 200 mm)79.2110.23
DPS-T-03-KIT
Tine KitAccessoriesTine Kit, 220mm, Straight8.66
DPS30-1P-0003-00000-A
Destaco Bag GripperBaseBag Gripper - Base Model, 30kg, No Add-on's, Assembled, 220mm, straight tine29.5 x 20.47 x 5.9 in (750 x 520 x 150 mm)60.566.14
DPS15-1P-0003-00000-K
Destaco Bag GripperBaseBag Gripper - Base Model, 15kg, No Add-on's, Kitted, 220mm, straight tine21.65 x 14.96 x 5.9 in (550 x 380 x 150 mm)45.833.07
DPS15-1P-0011-00000-A
Destaco Bag GripperBaseBag Gripper - Base Model, 15kg, No Add-on's, Assembled, 120mm, 10° Bent tine21.65 x 14.96 x 5.9 in (550 x 380 x 150 mm)45.833.07
DPS15-1P-0012-00000-A
Destaco Bag GripperBaseBag Gripper - Base Model, 15kg, No Add-on's, Assembled, 160mm, 10° Bent tine21.65 x 14.96 x 5.9 in (550 x 380 x 150 mm)45.833.07
DPS50-1P-0003-00000-K
Destaco Bag GripperBaseBag Gripper - Base Model, 50kg, No Add-on's, Kitted, 220mm, straight tine39.37 x 24.21 x 7.87 in (1000 x 615 x 200 mm)79.2110.23
DPS30-1P-0001-00000-A
Destaco Bag GripperBaseBag Gripper - Base Model, 30kg, No Add-on's, Assembled, 120mm straight tine29.5 x 20.47 x 5.9 in (750 x 520 x 150 mm)60.566.14
DPS50-1P-0001-00000-K
Destaco Bag GripperBaseBag Gripper - Base Model, 50kg, No Add-on's, Kitted, 120mm, straight tine39.37 x 24.21 x 7.87 in (1000 x 615 x 200 mm)79.2110.23
DPS15-1P-0013-00000-K
Destaco Bag GripperBaseBag Gripper - Base Model, 15kg, No Add-on's, Kitted, 220mm, 10° Bent tine21.65 x 14.96 x 5.9 in (550 x 380 x 150 mm)45.833.07
DPS-T-02-KIT
Tine KitAccessoriesTine Kit, 160mm, Straight6.3
DPS50-1P-0001-00000-A
Destaco Bag GripperBaseBag Gripper - Base Model, 50kg, No Add-on's, Assembled, 120mm, straight tine39.37 x 24.21 x 7.87 in (1000 x 615 x 200 mm)79.2110.23
DPS30-1P-0003-00000-K
Destaco Bag GripperBaseBag Gripper - Base Model, 30kg, No Add-on's, Kitted, 220mm, straight tine29.5 x 20.47 x 5.9 in (750 x 520 x 150 mm)60.566.14
DPS50-1P-0013-00000-A
Destaco Bag GripperBaseBag Gripper - Base Model, 50kg, No Add-on's, Assembled, 220mm, 10° Bent tine39.37 x 24.21 x 7.87 in (1000 x 615 x 200 mm)79.2110.23
DPS50-1P-0003-00000-A
Destaco Bag GripperBaseBag Gripper - Base Model, 50kg, No Add-on's, Assembled, 220mm, straight tine39.37 x 24.21 x 7.87 in (1000 x 615 x 200 mm)79.2110.23
DPS-RS-LD-06-KIT
Robot Stand-Off KitAccessoriesRobot Stand-Off Kit, 6 inch, 160mm Bolt Circle, Light Duty8.5
DPS15-1P-0003-00000-A
Destaco Bag GripperBaseBag Gripper - Base Model, 15kg, No Add-on's, Assembled, 220mm, straight tine21.65 x 14.96 x 5.9 in (550 x 380 x 150 mm)45.833.07
DPS-RS-LD-04-KIT
Robot Stand-Off KitAccessoriesRobot Stand-Off Kit, 6 inch, 125mm Bolt Circle, Light Duty6.3
DPS15-1P-0012-00000-K
Destaco Bag GripperBaseBag Gripper - Base Model, 15kg, No Add-on's, Kitted, 160mm, 10° Bent tine21.65 x 14.96 x 5.9 in (550 x 380 x 150 mm)45.833.07
DPS15-1P-0004-00000-A
Destaco Bag GripperBaseBag Gripper - Base Model, 15kg, No Add-on's, Assembled, 280mm, straight tine21.65 x 14.96 x 5.9 in (550 x 380 x 150 mm)45.833.07
DPS15-1P-0014-00000-K
Destaco Bag GripperBaseBag Gripper - Base Model, 15kg, No Add-on's, Kitted, 280mm, 10° Bent tine21.65 x 14.96 x 5.9 in (550 x 380 x 150 mm)45.833.07
DPS-RS-LD-05-KIT
Robot Stand-Off KitAccessoriesRobot Stand-Off Kit, 4 inch, 160mm Bolt Circle, Light Duty7.7
DPS50-1P-0002-00000-A
Destaco Bag GripperBaseBag Gripper - Base Model, 50kg, No Add-on's, Assembled, 160mm, straight tine39.37 x 24.21 x 7.87 in (1000 x 615 x 200 mm)79.2110.23
DPS-T-14-KIT
Tine KitAccessoriesTine Kit, 280mm, Bent11.02
DPS30-1P-0012-00000-K
Destaco Bag GripperBaseBag Gripper - Base Model, 30kg, No Add-on's, Kitted, 160mm, 10° Bent tine29.5 x 20.47 x 5.9 in (750 x 520 x 150 mm)60.566.14
DPS-RS-LD-03-KIT
Robot Stand-Off KitAccessoriesRobot Stand-Off Kit, 4 inch, 125mm Bolt Circle, Light Duty5.5
DPS30-1P-0002-00000-A
Destaco Bag GripperBaseBag Gripper - Base Model, 30kg, No Add-on's, Assembled, 160mm, straight tine29.5 x 20.47 x 5.9 in (750 x 520 x 150 mm)60.566.14
DPS30-1P-0011-00000-K
Destaco Bag GripperBaseBag Gripper - Base Model, 30kg, No Add-on's, Kitted, 120mm, 10° Bent tine29.5 x 20.47 x 5.9 in (750 x 520 x 150 mm)60.566.14
DPS30-1P-0004-00000-K
Destaco Bag GripperBaseBag Gripper - Base Model, 30kg, No Add-on's, Kitted, 280mm, straight tine29.5 x 20.47 x 5.9 in (750 x 520 x 150 mm)60.566.14
DPS30-1P-0011-00000-A
Destaco Bag GripperBaseBag Gripper - Base Model, 30kg, No Add-on's, Assembled, 120mm, 10° Bent tine29.5 x 20.47 x 5.9 in (750 x 520 x 150 mm)60.566.14
DPS30-1P-0004-00000-A
Destaco Bag GripperBaseBag Gripper - Base Model, 30kg, No Add-on's, Assembled, 280mm, straight tine29.5 x 20.47 x 5.9 in (750 x 520 x 150 mm)60.566.14
