ENCLOSED PNEUMATIC POWER CLAMPS | HEAVY-DUTY MODULAR - 82M-3E SERIES

DESTACO - Workholding Equipment & Automation Tooling Solutions
Clamping
Pneumatic Clamping
Pneumatic Power Clamps
Pneumatic Power Clamps-82M-3E

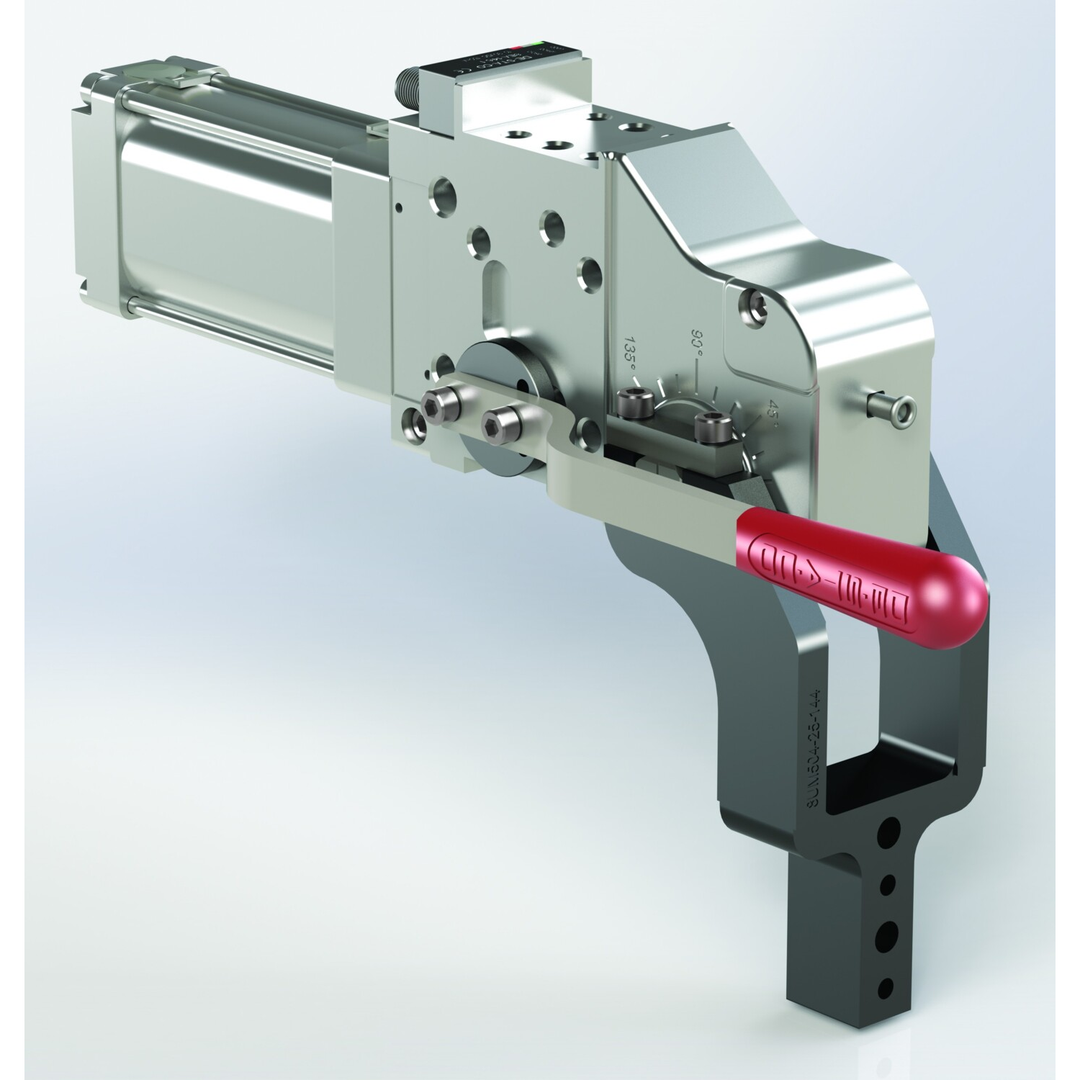

82M-3NXXXX6XXX - The New 82M-3E Series Power Clamp Offers Multiple Mounting And Shaft Options For Euro/Naams Standards, With Field Adjustable Opening Angles, Multiple Cylinder Sizes And First-In-Class Manual Locking.

Default Image

82M-3NXXXX6XXX - The New 82M-3E Series Power Clamp Offers Multiple Mounting And Shaft Options For Euro/Naams Standards, With Field Adjustable Opening Angles, Multiple Cylinder Sizes And First-In-Class Manual Locking.

Visit Product Series:

Pneumatic Power Clamps-82M-3E

Unit View

Imperial

Metric

Dimensions / Applications

Weight (lb)8.36

Technical Details

Cylinder Bore (in)2.48
Holding Torque (Max) (ft-lb)1325.0
Port SizeG 1/4|1/4-18 NPT
Supplied?No

Product Information

Accessories8EA-146-4|8EA-154-4|8EA-147-4|8EA-155-4|8EA-158-4|8EA-167-4|8EL-002-1|8EL-003-1
BrandDESTACO
Clamp Arm StyleU-Arm (Center)
Hand LeverYes|No
Product TypeEnclosed Pneumatic Power Clamp
Spindle Included?No
