Manual Clamping

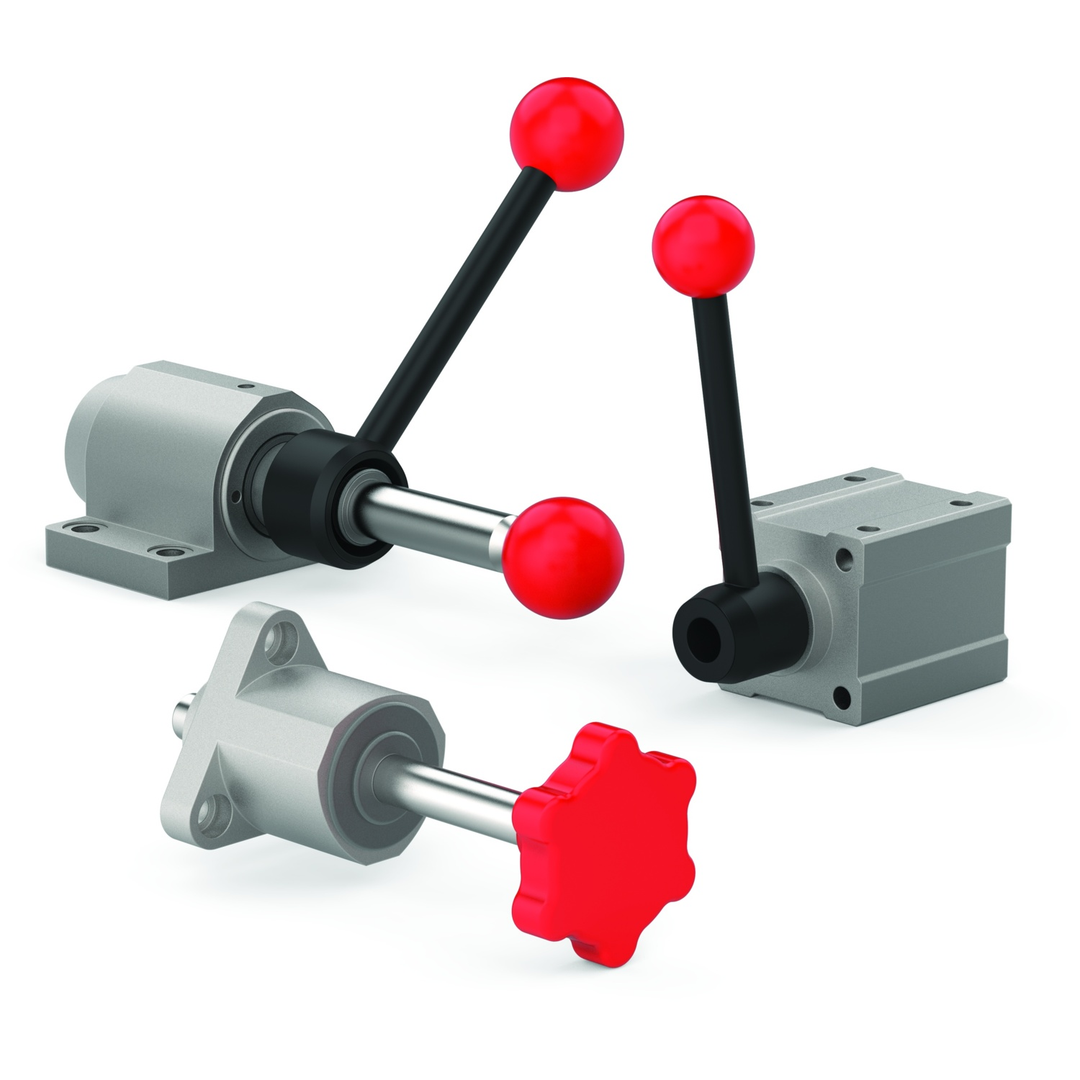

Destaco’s FO-221-80 Series of variable stroke, straight line action clamps are designed with plunger clamping, red handle, and foot mount body capability.

FO-221-80

Visit Product Series:
CAD
Product Details Unit View:
Clamping Range (in) 73.75
Maximum Holding Capacity (lbf) 4045.0
Plunger Height (in) 1.38
Plunger Travel (in) 3.15
Weight (lb) 7.46
Weight (kg) 3.385
Plunger Travel (mm) 80
Rapid Stroke (mm) 80
Clamping Force (N) 100.0
Max Clamping Stroke (mm) 4.0
Maxmum Holding Capacity (N) 18000.0
Operating Force (N) 3000.0
Plunger Height (mm) 35.0
cad_url_button /assets/cad-drawings/product/manual_clamps/FO-221-80.STEP
Operating Method One Hand/Hand Lever
Product Function Clamping
Product Series FO Series
DistributorGroup Workholding (Manual, Power and Hydraulic Clamps)
Base Mounting Style Foot
PublishedDate 1680536119000
