Straight Line Action Clamps for Assembly, Testing & More

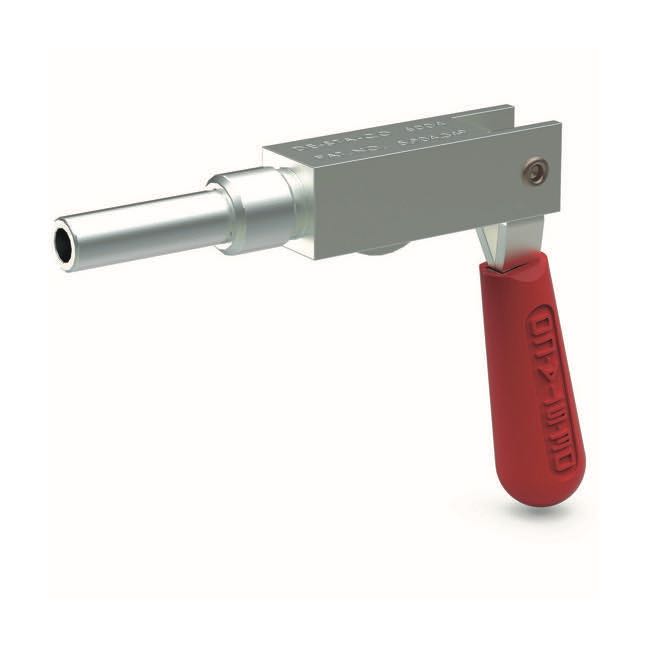

6000 Series straight line action clamp

STRAIGHT LINE ACTION CLAMPS FOR ASSEMBLY, FIXTURE CHECKING, WELDING & TENSIONING DEVICES – 6000 SERIES

DESTACO’s 6000 Series straight line action clamps feature up-to 2-3 times more holding capacity than the Model 604, may be mounted through a hole or inside a tapped hole, and lock over center in the extended and retracted position. Common applications for these clamps include assembly, fixture checking, welding, and tensioning devices.

Features

  • Easy to operate, push/pull handle allows the plunger to move in and out along its axis.
  • Plunger locks in extended position only
  • Up to 3 times more holding capacity than the legacy 600 Series
  • Can retrofit directly into the 600 series profile
  • Mounts through a hole or inside a tapped hole and locks securely over center in both extended and retracted positions
  • Available in zinc plated carbon steel versions, as well as in stainless steel
  • Optional Toggle-Lock Plus models with a secondary locking release lever for added safety and ergonomics
  • Some models lock in the open position.

Markets

Applications

Product
Short Description
Maximum Holding Capacity (lbf)
Standard Material
Product Type
Plunger Travel (in)
Imperial or Metric Product
Weight (lbs)
Plunger Height (in)
Base Mounting Style
6004-MM
Straight Line Action Clamp, Metric, 50% greater capacity than model 604450SteelStraight-Line Action Clamp1.5Metric0.80.44Through Hole
6024-MMSS
Clamps Straight Line Action - Metric2100Stainless SteelStraight-Line Action Clamp2.6Metric3.53Through Hole
6002-MMR
a 6002-MM Straight Line Action Clamp with Toggle Lock Plus400SteelStraight-Line Action Clamp0.75Metric0.440.44Through Hole
6024-MMR
Straight Line Action Clamp, Metric, Toggle Lock Plus2100SteelStraight-Line Action Clamp2.6Metric3.53Through Hole
6004
Straight Line Action Clamp, through-hole mounted, straight line450SteelStraight-Line Action Clamp1.5Imperial0.820.44Through Hole
6024-RSS
Straight Line Action Clamp, Stainless Steel, Toggle Lock Plus2100Stainless SteelStraight-Line Action Clamp2.6Imperial3.17Through Hole
6024
Straight Line Action Clamp, through-hole mounted2100SteelStraight-Line Action Clamp2.6Imperial3.17Through Hole
6004-MMSS
Straight Line Action Clamp, a Stainless Steel 6004-MM600Stainless SteelStraight-Line Action Clamp1.5Metric0.820.44Through Hole
6024-MM
Straight Line Action Clamp, Metric2100SteelStraight-Line Action Clamp2.6Metric3.17Through Hole
6024-R
Straight Line Action Clamp, Toggle Lock Plus2100SteelStraight-Line Action Clamp2.6Imperial3.17Through Hole
6024-MMRSS
Straight Line Action Clamp, Stainless Steel, Metric, Toggle Lock Plus2100Stainless SteelStraight-Line Action Clamp2.6Metric3.53Through Hole
6002-RSS
6002-RSS | Stainless Steel 6002-R400Stainless SteelStraight-Line Action Clamp0.75Imperial0.440.44Through Hole
6002-SS
Straight-Line Action Clamp, a Stainless Steel 6002400Stainless SteelStraight-Line Action Clamp0.75Imperial0.440.44Through Hole
6004-MMRSS
Straight Line Action Clamp, a Stainless Steel 6004-MMR600Stainless SteelStraight-Line Action Clamp1.5Metric0.820.44Through Hole
6002
Straight Line Action Clamp, through-hole mounted400SteelStraight-Line Action Clamp0.75Imperial0.440.44Through Hole
6004-R
Straight Line Action Clamp, 6004 with Toggle Lock Plus450SteelStraight-Line Action Clamp1.5Imperial0.890.44Through Hole
6002-MMRSS
Straight Line Action Clamp, a Stainless Steel 6002-MMR400Stainless SteelStraight-Line Action Clamp0.75Metric0.440.44Through Hole
6002-R
Straight Line Action Clamp, a 6002 with Toggle Lock Plus400SteelStraight-Line Action Clamp0.75Imperial0.440.44Through Hole
6004-MMR
Straight Line Action Clamp, 6004-MM with Toggle Lock Plus450SteelStraight-Line Action Clamp1.5Metric0.820.44Through Hole
6004-SS
Straight Line Action Clamp, a Stainless Steel 6004600Stainless SteelStraight-Line Action Clamp1.5Imperial0.730.44Through Hole
6024-SS
Straight Line Action Clamp, Stainless Steel2100Stainless SteelStraight-Line Action Clamp2.6Imperial3.17Through Hole
6002-MMSS
Stainless Steel 6002-MM, through-hole mounted400Stainless SteelStraight-Line Action Clamp0.75Metric0.440.44Through Hole
6002-MM
6002-MM - Clamps Straight Line Action - Metric400SteelStraight-Line Action Clamp0.75Metric0.440.44Through Hole
6004-RSS
Straight Line Action Clamp, a Stainless Steel Version of 6004-R600Stainless SteelStraight-Line Action Clamp1.5Imperial0.890.44Through Hole
