ROUND TOOLING FOR END EFFECTORS

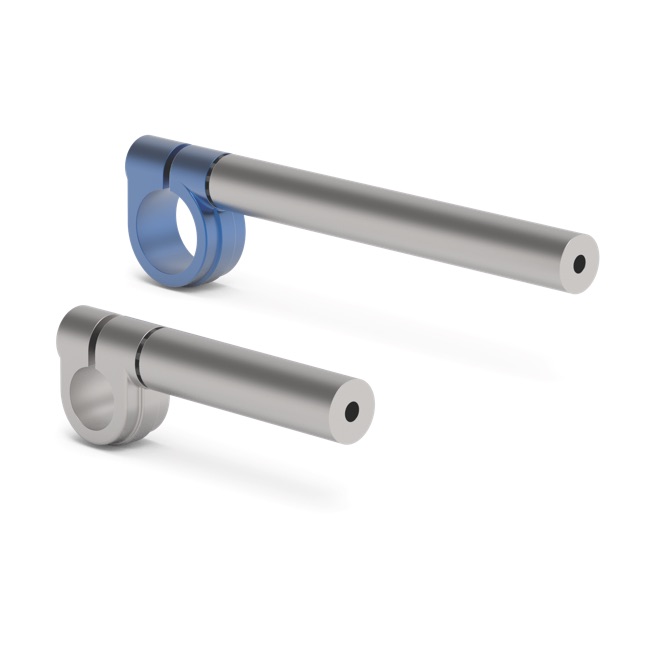

Rod End Single End Extensions
Features
- Mounts to round tube for extended mounting options
- Provides 360° of rotational adjustments along a single axis
Markets
Applications
| Product | Weight (lbs) | Length (in) | Tube Size | Tube Diameter (in) | Product Type | Maximum Static Clamp Load (ft lb) | Finish | Material |
|---|---|---|---|---|---|---|---|---|
| 1.28 | 15 | 1.50 in | 1.50 | Single End Extensions | 200 | Silver | Aluminum | |
| 0.48 | 3.94 | 25 mm | 0.98 | Single End Extensions | 200 | Blue | Aluminum | |
| 0.73 | 7 | 1.50 in | 1.50 | Single End Extensions | 200 | Silver | Aluminum | |
| 1.21 | 14 | 1.50 in | 1.50 | Single End Extensions | 200 | Silver | Aluminum | |
| 1.03 | 12 | 1.00 in | 1.00 | Single End Extensions | 200 | Silver | Aluminum | |
| 0.6 | 5 | 1.50 in | 1.50 | Single End Extensions | 200 | Silver | Aluminum | |
| 1.16 | 13.78 | 25 mm | 0.98 | Single End Extensions | 200 | Blue | Aluminum | |
| 1.04 | 11.81 | 40 mm | 1.57 | Single End Extensions | 200 | Blue | Aluminum | |
| 1.29 | 15.75 | 25 mm | 0.98 | Single End Extensions | 200 | Blue | Aluminum | |
| 0.42 | 3 | 1.00 in | 1.00 | Single End Extensions | 200 | Silver | Aluminum | |
| 0.46 | 3 | 1.50 in | 1.50 | Single End Extensions | 200 | Silver | Aluminum | |
| 1.55 | 19 | 1.50 in | 1.50 | Single End Extensions | 200 | Silver | Aluminum | |
| 1.31 | 15.75 | 40 mm | 1.57 | Single End Extensions | 200 | Blue | Aluminum | |
| 0.64 | 5.91 | 40 mm | 1.57 | Single End Extensions | 200 | Blue | Aluminum | |
| 0.94 | 10 | 1.50 in | 1.50 | Single End Extensions | 200 | Silver | Aluminum | |
| 0.62 | 5.91 | 25 mm | 0.98 | Single End Extensions | 200 | Blue | Aluminum | |
| 0.77 | 7.87 | 40 mm | 1.57 | Single End Extensions | 200 | Blue | Aluminum | |
| 0.87 | 9 | 1.50 in | 1.50 | Single End Extensions | 200 | Silver | Aluminum | |
| 1.3 | 16 | 1.00 in | 1.00 | Single End Extensions | 200 | Silver | Aluminum | |
| 0.62 | 6 | 1.00 in | 1.00 | Single End Extensions | 200 | Silver | Aluminum | |
| 1.1 | 13 | 1.00 in | 1.00 | Single End Extensions | 200 | Silver | Aluminum | |
| 1.17 | 14 | 1.00 in | 1.00 | Single End Extensions | 200 | Silver | Aluminum | |
| 1.51 | 19 | 1.00 in | 1.00 | Single End Extensions | 200 | Silver | Aluminum | |
| 1.37 | 17 | 1.00 in | 1.00 | Single End Extensions | 200 | Silver | Aluminum | |
| 0.37 | 1.97 | 40 mm | 1.57 | Single End Extensions | 200 | Blue | Aluminum | |
| 0.55 | 5 | 1.00 in | 1.00 | Single End Extensions | 200 | Silver | Aluminum | |
| 0.91 | 9.84 | 40 mm | 1.57 | Single End Extensions | 200 | Blue | Aluminum | |
| 1.35 | 16 | 1.50 in | 1.50 | Single End Extensions | 200 | Silver | Aluminum | |
| 0.83 | 9 | 1.00 in | 1.00 | Single End Extensions | 200 | Silver | Aluminum | |
| 0.51 | 3.94 | 40 mm | 1.57 | Single End Extensions | 200 | Blue | Aluminum | |
| 1.18 | 13.78 | 40 mm | 1.57 | Single End Extensions | 200 | Blue | Aluminum | |
| 1.02 | 11.81 | 25 mm | 0.98 | Single End Extensions | 200 | Blue | Aluminum | |
| 0.75 | 7.87 | 25 mm | 0.98 | Single End Extensions | 200 | Blue | Aluminum | |
| Single End Extensions | ||||||||
| Single End Extensions | ||||||||
| 0.89 | 9.84 | 25 mm | 0.98 | Single End Extensions | 200 | Blue | Aluminum | |
| 0.9 | 10 | 1.00 in | 1.00 | Single End Extensions | 200 | Silver | Aluminum | |
| 1.01 | 11 | 1.50 in | 1.50 | Single End Extensions | 200 | Silver | Aluminum | |
| 0.8 | 8 | 1.50 in | 1.50 | Single End Extensions | 200 | Silver | Aluminum | |
| 0.49 | 4 | 1.00 in | 1.00 | Single End Extensions | 200 | Silver | Aluminum | |
| 1.44 | 18 | 1.00 in | 1.00 | Single End Extensions | 200 | Silver | Aluminum | |
| 1.24 | 15 | 1.00 in | 1.00 | Single End Extensions | 200 | Silver | Aluminum | |
| 0.35 | 1.97 | 25 mm | 0.98 | Single End Extensions | 200 | Blue | Aluminum | |
| 0.96 | 11 | 1.00 in | 1.00 | Single End Extensions | 200 | Silver | Aluminum | |
| 1.14 | 13 | 1.50 in | 1.50 | Single End Extensions | 200 | Silver | Aluminum | |
| 1.42 | 17 | 1.50 in | 1.50 | Single End Extensions | 200 | Silver | Aluminum | |
| Single End Extensions | ||||||||
| 1.08 | 12 | 1.50 in | 1.50 | Single End Extensions | 200 | Silver | Aluminum | |
| 0.76 | 8 | 1.00 in | 1.00 | Single End Extensions | 200 | Silver | Aluminum | |
| 0.69 | 7 | 1.00 in | 1.00 | Single End Extensions | 200 | Silver | Aluminum | |
| 1.49 | 18 | 1.50 in | 1.50 | Single End Extensions | 200 | Silver | Aluminum | |
| 0.53 | 4 | 1.50 in | 1.50 | Single End Extensions | 200 | Silver | Aluminum | |
| 0.67 | 6 | 1.50 in | 1.50 | Single End Extensions | 200 | Silver | Aluminum |
