VACUUM PRODUCTS FOR END EFFECTORS

VACUUM GENERATORS & PORT ONLY ADAPTERS

ARV^® - the original, patented Auto-Release Venturi offers users the fastest vacuum and blow-off in the industry with single line operation, integrated blow-off and built-in exhaust silencer. Mounting options include right or left hand apple core mounting or no apple core mount for use with DESTACO's spring cup mounts. The ARV® Series is also available in a block style for remote mounting and each mount can be ordered with Imperial or Metric ports. DESTACO has improved upon the already extremely successful ARV by adding a quick-release button to easily fine tune vacuum cup position during setup.

Features

Fast vacuum and blow-off actuation
Lightweight aluminum construction increases automation speed
Faster productions speeds
60% less air consumption (ARV)
150 plus cycles per minute (ARV)
Low air consumption with single air-line (ARV)
Quiet operation with built-in silencer
Available with vacuum sensor port
Industry standard mounting.
Simple and quick to add or replace

Markets

Applications

Stamping
CNC Machining
Plastic injection molding

Product	Product Type	Cup Thread	Mounting	Noise Level (dB(A))	Speed to Vacuum @ 4 Bar [60psi] in Seconds	Blow-off Air Consumption (Nl/min [5,5 scfm])	Vacuum Air Consumption (Nl/min [1,4 scfm])	Speed to Release @ 4 Bar [60psi] in Seconds
CPI-VSA-ARVR-750-U38	Venturi - Auto Release	3/8 NPT	0.75 Apple Core, Right Hand	68	0,2 - 0,3	0	40	0,02
CPI-VSA-ARVL-750-U38	Venturi - Auto Release	3/8 NPT	0.75 Apple Core, Left Hand	68	0,2 - 0,3	0	40	0,02
CPI-VSA-ARVR-312-U38	Venturi - Auto Release	3/8 NPT	Block	68	0,2 - 0,3	0	40	0,02
CPI-VSA-ARVR-000-U38	Venturi - Auto Release	3/8 NPT	No Apple Core	68	0,2 - 0,3	0	40	0,02
CPI-VSA-ARVL-750-G38	Venturi - Auto Release	G3/8 BSPP	0.75 Apple Core, Left Hand	68	0,2 - 0,3	0	40	0,02
CPI-VSA-750	Venturi 750 Series			68 - 76	0,36	156	40	0,08
CPI-VSA-750-BO	Venturi 750 Series W/Bo			68 - 76	0,36	156	40	0,08
CPI-VSA-750-BO-LP	Venturi - Low Profile	1/8 NPT	.75 in. Apple Core	68 - 76	0,36	156	40	0,08
CPI-VSA-ARVR-000-G38-VS	Venturi - Auto Release	G3/8 BSPP	No Apple Core	68	0,2 - 0,3	0	40	0,02
CPI-VSA-ARVS-5-U18	Venturi - Auto Release			68	0,2 - 0,3	0	40	0,02
CPI-VSA-312-BO	Venturi 312 Series W/BlowoFF
CPI-VSA-ARVR-750-U38-VS	Venturi - Auto Release	3/8 NPT	0.75 Apple Core, Right Hand	68	0,2 - 0,3	0	40	0,02
CPI-VSA-ARVL-750-G38-VS	Venturi - Auto Release	G3/8 BSPP	0.75 Apple Core, Left Hand	68	0,2 - 0,3	0	40	0,02
CPI-VSA-ARVL-750-U38-VS	Venturi - Auto Release	3/8 NPT	0.75 Apple Core, Left Hand	68	0,2 - 0,3	0	40	0,02
CPI-VSA-ARV-RK	Venturi - Auto Release Repair Kit			68	0,2 - 0,3	0	40	0,02
CPI-VSA-500-M18	Venturi - MicroTool		.50 in. Apple Core
CPI-VSA-ARVL-B32-U38-VS	Venturi - Auto Release	3/8 NPT	32 mm Ball, Left Hand	68	0,2 - 0,3	0	40	0,02
CPI-VSA-ARVR-B32-G38-VS	Venturi - Auto Release	G3/8 BSPP	32 mm Ball, Right Hand	68	0,2 - 0,3	0	40	0,02
CPI-VSA-19-BO-LP	Venturi - Low Profile	1/8 NPT	19 mm Apple Core	68 - 76	0,36	156	40	0,08
CPI-VSA-ARVR-000-G38	Venturi - Auto Release	G3/8 BSPP	No Apple Core	68	0,2 - 0,3	0	40	0,02
CPI-VSA-750-BO-LP-VS	Venturi - Low Profile	1/8 NPT	.75 in. Apple Core	68 - 76	0,36	156	40	0,08
CPI-VSA-19-BO-LP-VS-ST2	Venturi - Low Profile	1/8 NPT	19 mm Apple Core	68 - 76	0,36	156	40	0,08
CPI-VSA-000-BO-LP-U14	Venturi
CPI-VSA-750-BO-LP-ST2	Venturi - Low Profile	1/8 NPT	.75 in. Apple Core	68 - 76	0,36	156	40	0,08
CPI-VSA-19-BO-LP-VS	Venturi - Low Profile	1/8 NPT	19 mm Apple Core	68 - 76	0,36	156	40	0,08
CPI-VSA-6	Micro Tooling Venturi
CPI-VSA-000-BO-LP-VS-ST2	Venturi - Low Profile	1/8 NPT	No Apple Core
CPI-VSA-ARVR-B112-G38	Venturi - Auto Release	G3/8 BSPP	1.12 in. Ball, Right Hand	68	0,2 - 0,3	0	40	0,02
CPI-PA-500-MG18-FG18	Micro Port Only Adapter
CPI-VSA-ARVR-B112-U38	Venturi - Auto Release	3/8 NPT	1.12 in. Ball, Right Hand	68	0,2 - 0,3	0	40	0,02
CPI-VSA-750-BO-LH	Venturi 750 Series W/Bo Left			68 - 76	0,36	156	40	0,08
CPI-VSA-ARVL-B32-U38	Venturi - Auto Release	3/8 NPT	32 mm Ball, Left Hand	68	0,2 - 0,3	0	40	0,02
CPI-PA-500-FG18-FG18	Micro Port Only Adapter	FG18	.50 in. Apple Core
CPI-VSA-ARVR-B112-U38-VS	Venturi - Auto Release	3/8 NPT	1.12 in. Ball, Right Hand	68	0,2 - 0,3	0	40	0,02
CPI-VSA-000-BO-LP	Venturi - Low Profile	1/8 NPT	No Apple Core
CPI-PA-500-FG18-MG18	Micro Port Only Adapter	FG18	.50 in. Apple Core
CPI-VSA-ARVR-750-G38	Venturi - Auto Release	G3/8 BSPP	0.75 Apple Core, Right Hand	68	0,2 - 0,3	0	40	0,02
CPI-VSA-ARVR-750-G38-VS	Venturi - Auto Release	G3/8 BSPP	0.75 Apple Core, Right Hand	68	0,2 - 0,3	0	40	0,02
CPI-VSA-000-BO-LP-VS	Venturi - Low Profile	1/8 NPT	No Apple Core
CPI-VSA-ARVL-B32-G38	Venturi - Auto Release	G3/8 BSPP	32 mm Ball, Left Hand	68	0,2 - 0,3	0	40	0,02
CPI-PA-500-FM5-FM5	Micro Port Only Adapter	FM5	.50 in. Apple Core
CPI-VSA-500-F18	Venturi - MicroTool	F18	.50 in. Apple Core
CPI-VSA-312-ST2	Venturi 312 Series W/Silencer
CPI-VSA-ARVR-B32-U38-VS	Venturi - Auto Release	3/8 NPT	32 mm Ball, Right Hand	68	0,2 - 0,3	0	40	0,02

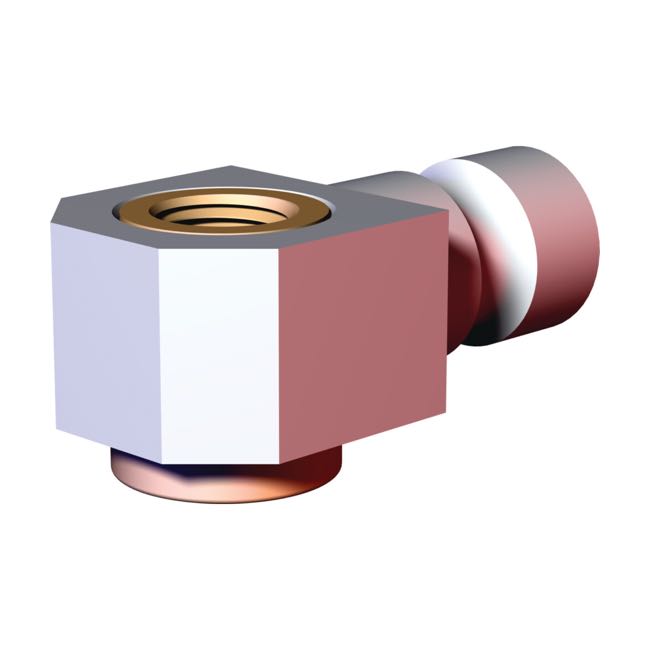

CPI-PA-500-F18-F18	Micro Port Only Adapter	F18	.50 in. Apple Core
CPI-VSA-ARVR-750-U38-HF	Venturi - Auto Release	3/8 NPT		68	0,2 - 0,3	0	40	0,02
CPI-VSA-ARVL-B32-G38-VS	Venturi - Auto Release	G3/8 BSPP	32 mm Ball, Left Hand	68	0,2 - 0,3	0	40	0,02
CPI-VSA-ARVL-B112-U38	Venturi - Auto Release	3/8 NPT	1.12 in. Ball, Left Hand	68	0,2 - 0,3	0	40	0,02
CPI-VSA-ARVR-B112-G38-VS	Venturi - Auto Release	G3/8 BSPP	1.12 in. Ball, Right Hand	68	0,2 - 0,3	0	40	0,02
CPI-VSA-ARVR-312-G38	Venturi - Auto Release	G3/8 BSPP	Block	68	0,2 - 0,3	0	40	0,02
CPI-VSA-750-BO-LP-VS-ST2	Venturi - Low Profile	1/8 NPT	.75 in. Apple Core	68 - 76	0,36	156	40	0,08
CPI-VSA-8-ST2	Venturi
CPI-VSA-ARVR-B32-U38	Venturi - Auto Release	3/8 NPT	32 mm Ball, Right Hand	68	0,2 - 0,3	0	40	0,02
CPI-VS-VM-2C	Vacuum Switch
CPI-VSA-312-BO-ST2	Venturi 312 Series W/Silencer
CPI-VSA-312	Venturi 312 Series
CPI-PA-500-FM5-MM5	Micro Port Only Adapter	FM5	.50 in. Apple Core
CPI-VSA-ARVL-B112-G38-VS	Venturi - Auto Release	G3/8 BSPP	1.12 in. Ball, Left Hand	68	0,2 - 0,3	0	40	0,02
CPI-VSL2-40	Level Comp
CPI-PA-500-F18-M18	Micro Port Only Adapter	F18	.50 in. Apple Core
CPI-VSA-ARVR-B32-G38	Venturi - Auto Release	G3/8 BSPP	32 mm Ball, Right Hand	68	0,2 - 0,3	0	40	0,02
CPI-VSA-ARVR-000-U38-VS	Venturi - Auto Release	3/8 NPT	No Apple Core	68	0,2 - 0,3	0	40	0,02
CPI-VSA-19	Venturi Assembly 19 Style			68 - 76	0,36	156	40	0,08
